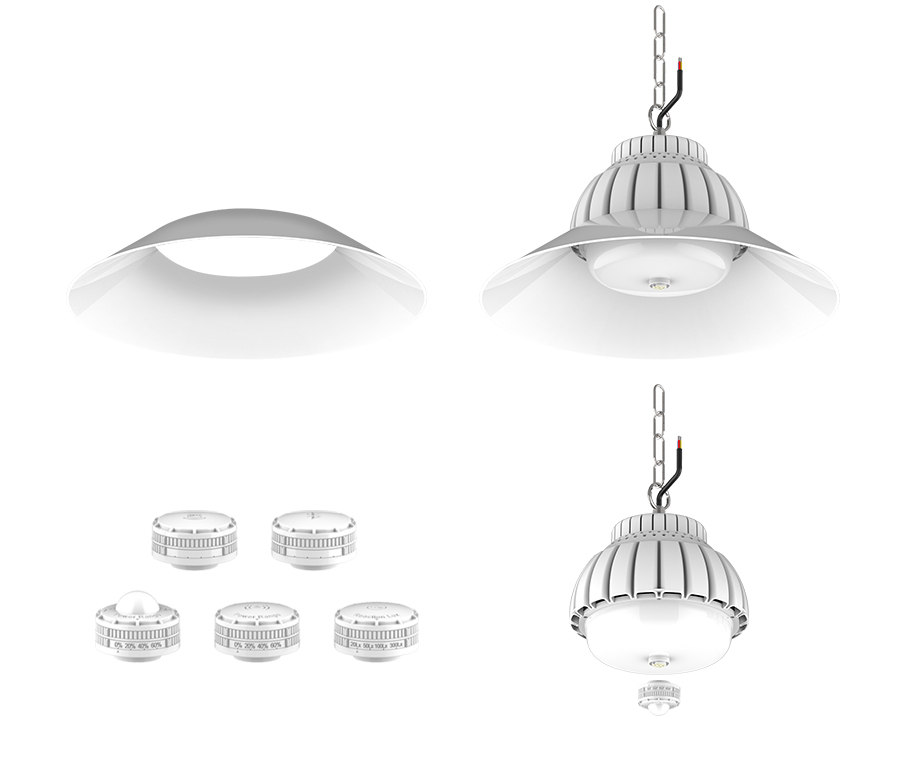

Matching Accessories
3D Animation
Description
1. CE FCC RoHS ERP PSE certificated
2. Original patented design product
3. Smart driver inside with temperature control protection program, available connect to IR sensor, radard sensor, photocell sensor, BT Mesh control and Wi-Fi control modules
4. Designed with air convection cooling, it operates at a lower and safer temperature
5. Energy-saving LED lighting for industrial projects
6. Retrofit LED lamp to replace old high bay light fixture
7. 65W 80W 100W 150W power optional
8. Mainly used in factories, warehouses, garages, processing workshops, etc.
Share:
Product Introduction
Strong heat dissipation
Strict selection of materials, quality assurance
Flame retardant PC shell with temperature resistance of 130 degrees, thickened high-purity aluminum radiator, LED chips of well-known brands; Driver power supply with excellent performance, European and American certification scheme, simple and efficient circuit design

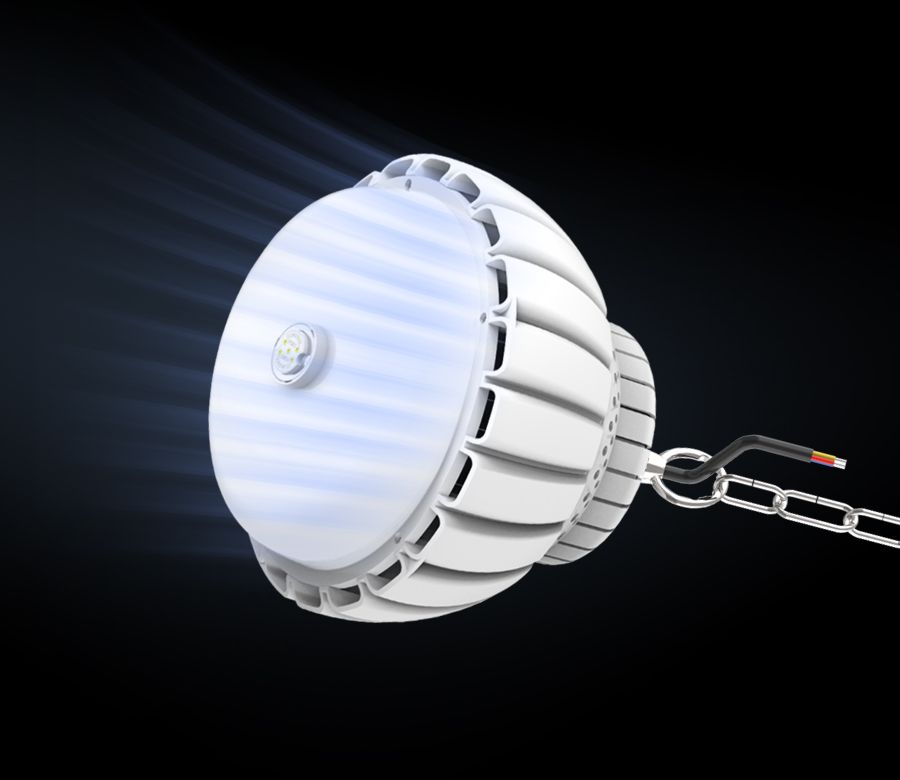

Original convection heat dissipation structure design
Air convection cooling with temperature control protection
Using the principle of upward flow of hot air, the cavity of the lamp is prone to high temperature during use. The streamlined design of the lamp body is designed at the bottom of the lamp body. Several aerodynamic air intake holes are designed. Multiple heat dissipation pipes discharge a large amount of hot air through the air outlet at the top to achieve high-performance heat dissipation
Energy saving with high bright lumens
Well-known brand led chips
New heat dissipation technology design patent, high-performance LED optical configuration, to meet the needs of various engineering lighting solutions SDCM<1, 130LM/W, CRI≥80RA,THD≤20%, AC100-277V, PF>0.95
Active cooling system design
High-performance self-cooling
When the product of the same specification is greater than 150W, an independent high-quality
fan with a lifespan of 50,000 hours is used;
Increase the air circulation inside the lamp body to achieve high-performance heat dissipation;
Copper shaft fans don't have to worry about the fan being broken before the LED chips

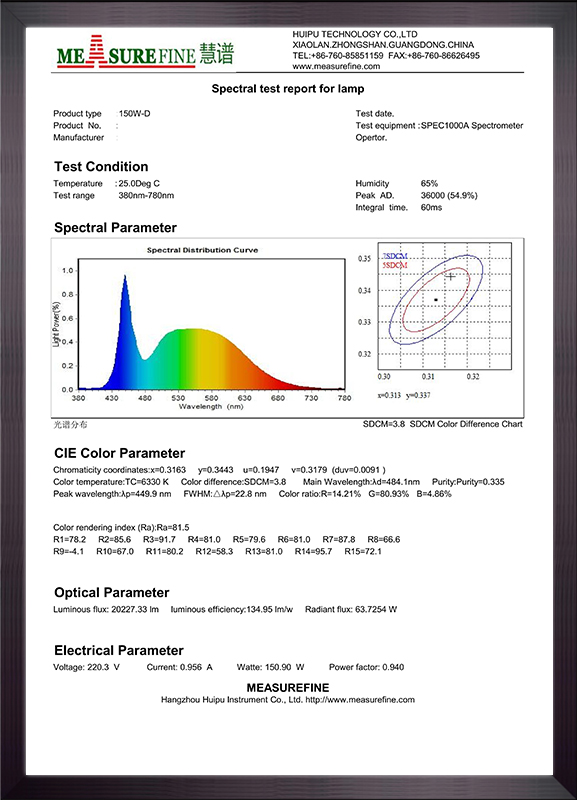

OPTICAL INSPECTION REPORT
If you need ies report, please consult our business
We can provide professional lighting solutions and lighting simulation effect solutions
APPLICATION SCENARIO DISPLAY
Datasheet
Guangdong LUFUL Lighting Technology Co., Ltd.
| RS1 SMART HIGH BAY LIGHT | |||||||||||||||
| Spec Sheet Revision Date: 2024-12-01 | |||||||||||||||
| Model: LF-RS1-G-65-150W-DS | |||||||||||||||
| Electricity Parameter | |||||||||||||||
| ·Rated Power: | 65W 80W 100W 150W | ||||||||||||||
| ·Working Power: | 65W 80W 100W 150W（±5%） | ||||||||||||||
| ·Input Voltage: | AC100-277V | ||||||||||||||
| ·Freqency Range: | 50/60Hz | ||||||||||||||
| ·Power Factor: | ＞0.9 | ||||||||||||||
| ·Power Efficiency: | 88﹪ | ||||||||||||||
| Optical Parameter | |||||||||||||||
| ·Light source configuration | Sanan | ||||||||||||||
| ·Color Temperature: | 3000K 4000K 6500K | ||||||||||||||
| ·Led Initial Flux: | 8450-19500lm | ||||||||||||||
| ·Luminous Efficiency: | 135LM/W（±5%） | ||||||||||||||
| ·Light attenuation standard | ≥25000 | ||||||||||||||
| ·Power configuration: | Non-isolated IC Smart Driver | ||||||||||||||
| ·Color Rendering Index: | Ra＞80 | ||||||||||||||
| ·Luminous Anlge: | ＞120° | ||||||||||||||
| Lamp Specification | |||||||||||||||
| ·Lamp Material: | PC with aluminum heat sink | ||||||||||||||
| ·Lampshade Material: | PC Cover | ||||||||||||||
| ·Lamp Colour: | White | ||||||||||||||
| ·Installation: | Hanging Chain | ||||||||||||||
| ·Lamp Weight : | 1.05KG | ||||||||||||||
| ·Overall Dimension : | φ200*216mm | ||||||||||||||
| ·IP Grade : | IP20 | ||||||||||||||
| ·Working Temperature : | -40℃—55℃ | ||||||||||||||
| ·Working Life-span : | 35000H | ||||||||||||||
