Description
1. CE FCC RoHS ERP PSE certificated
2. Original patented design product

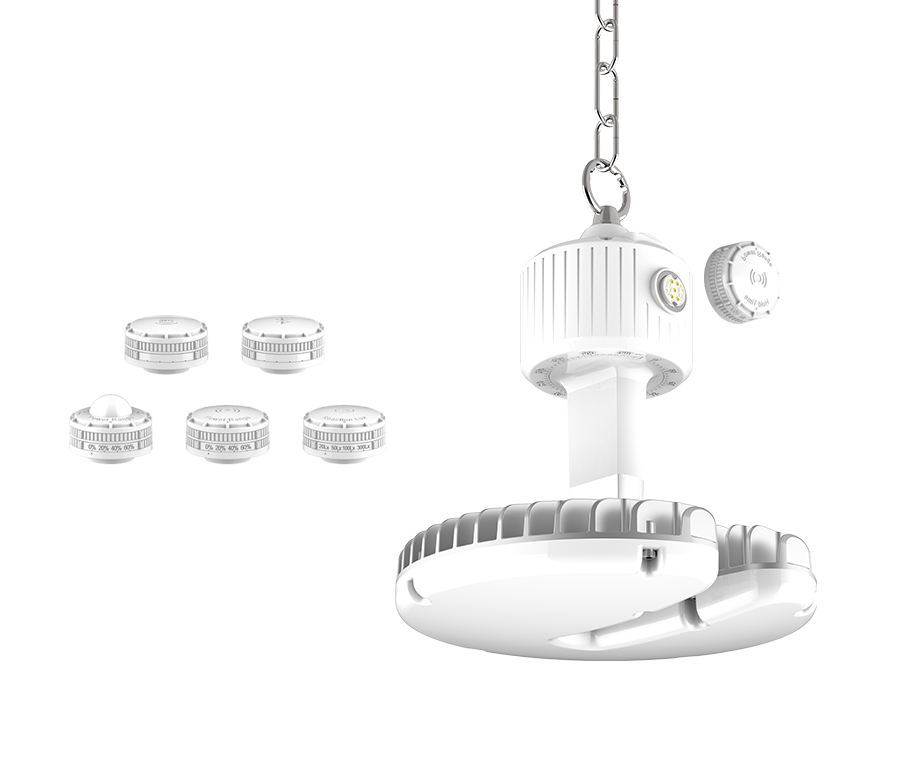

3. Smart driver inside with temperature control protection program, available connect to IR sensor, radard sensor, photocell sensor, BT Mesh control and Wi-Fi control modules
4. Universal adjustment function,multi-angle adjustable, to achieve accurate directional lighting needs
5. 3 CCT dial switch and power dial switch
6. Retrofit LED lamp to replace of HPS HID MHL
7. 65W 80W 100W 120W power optional
8. Mainly used in factories, warehouses, garages, processing workshops, etc.
Share:
Product Introduction
Flexible adjustment at multiple angles
Free adjustment of latitude and longitude
1. Abreakthrough to add universal adjustment function on the lamp, users can adjust different angles as they like
2. The power is moderate and can be rotated and stopped accurately, so as to achieve precise directional lighting requirements without changing the position of the lamp

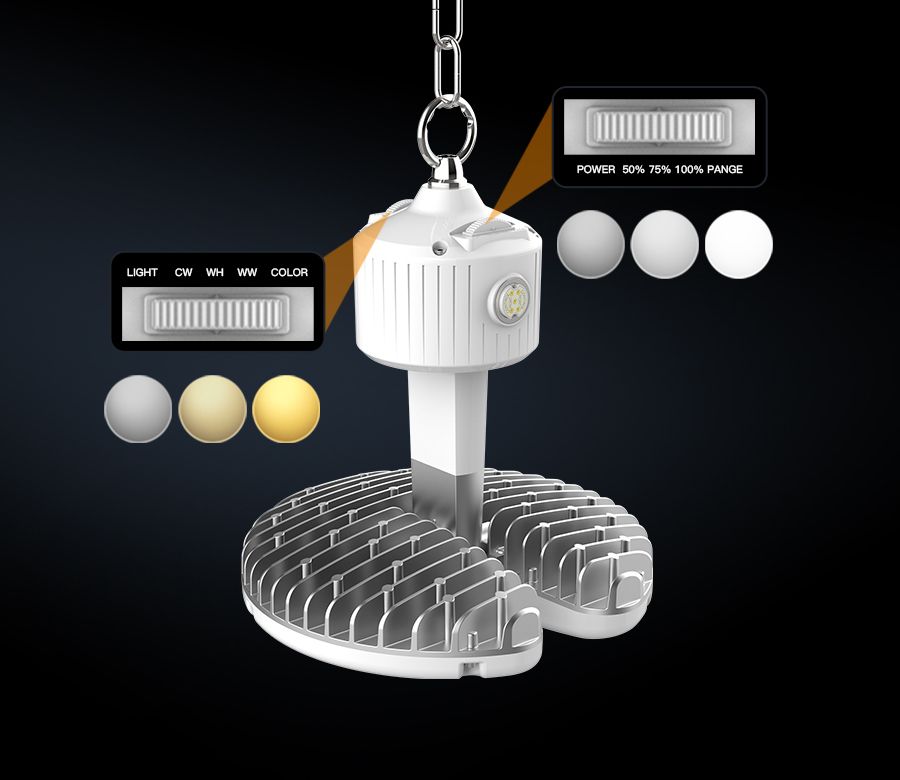

Dial code photoelectric adjustment
Adjust photoelectric parameters to save energy and reduce emissions
Users can flexibly adjust the color of the light according to the actual use scene, and at the same time adjust the power and brightness of the lamp according to the actual lighting brightness requirements, so as to achieve the purpose of energy saving and emission reduction for one lamp with multiple functions.

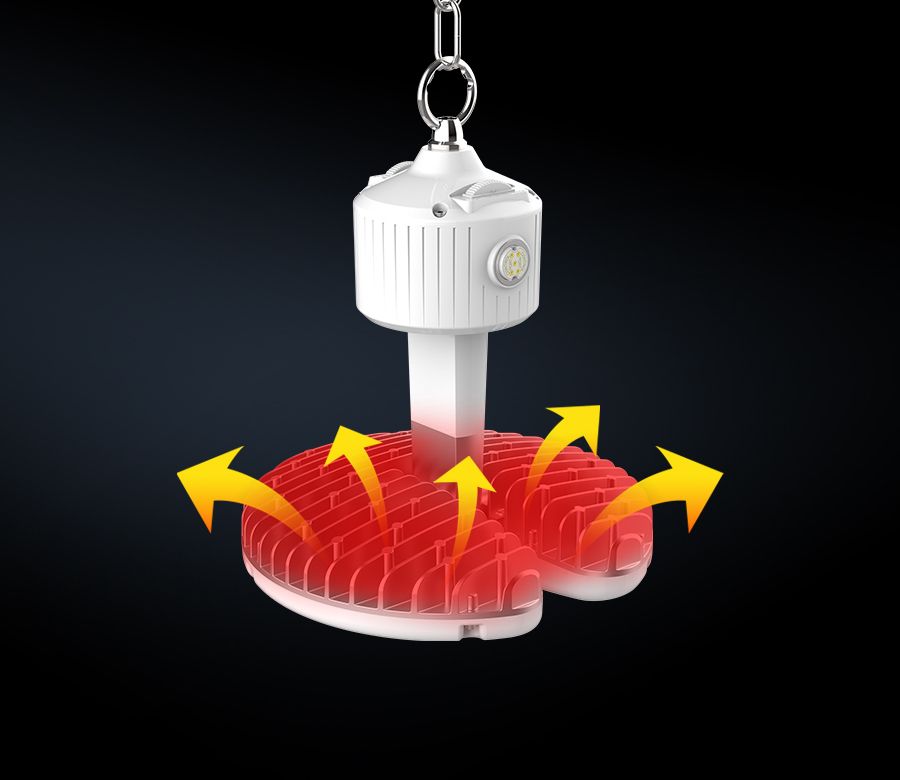

Good heat dissipation, long lifespan
Thickened high-purity aluminum radiator
1. The light source board is directly attached to the pure aluminum radiator, and the straight-forward direct heat dissipation method is always the best solution
2. Industrial-style shape design, cooling teeth in line with air flow to meet high-intensity cooling requirements while ensuring aesthetics
3. The sharp-edged metal texture and unique industrial design style interpret this elegant and thoughtful lamp
Energy saving with high bright lumens
Well-known brand led chips
New heat dissipation technology design patent, high-performance LED optical configuration, to meet the needs of various engineering lighting solutions SDCM<1, 130LM/W, CRI≥80RA,THD≤20%, AC100-277V, PF>0.95

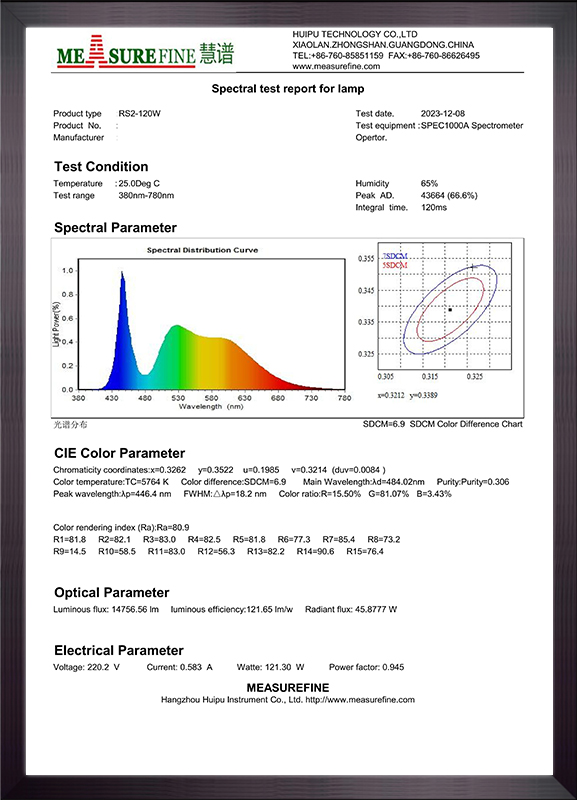

OPTICAL INSPECTION REPORT
If you need ies report, please consult our business
We can provide professional lighting solutions and lighting simulation effect solutions
APPLICATION SCENARIO DISPLAY
Datasheet
Guangdong LUFUL Lighting Technology Co., Ltd.
RS2 SMART MULTI-ANGLE INDUSTRIAL LIGHT | |||||||||||||||
Spec Sheet Revision Date: 2024-12-01 | |||||||||||||||
Model: LF-RS2-65-120W-D | |||||||||||||||
Electricity Parameter | |||||||||||||||
·Rated Power: | 65W 80W 100W 120W | ||||||||||||||
·Working Power: | 65W 80W 100W 120W(±5%) | ||||||||||||||
·Input Voltage: | AC100-277V | ||||||||||||||
·Freqency Range: | 50/60Hz | ||||||||||||||
·Power Factor: | >0.9 | ||||||||||||||
·Power Efficiency: | 88﹪ | ||||||||||||||
Optical Parameter | |||||||||||||||
·Light source configuration | Sanan | ||||||||||||||
·Color Temperature: | 3000K 4000K 6500K | ||||||||||||||
·Led Initial Flux: | 8450-15600lm | ||||||||||||||
·Luminous Efficiency: | 135LM/W(±5%) | ||||||||||||||
·Light attenuation standard | ≥25000 | ||||||||||||||
·Power configuration: | Non-isolated IC Smart Driver | ||||||||||||||
·Color Rendering Index: | Ra>80 | ||||||||||||||
·Luminous Anlge: | >120° | ||||||||||||||
Lamp Specification | |||||||||||||||
·Lamp Material: | PC with aluminum heat sink | ||||||||||||||
·Lampshade Material: | PC Cover | ||||||||||||||
·Lamp Colour: | White | ||||||||||||||
·Installation: | Hanging Chain | ||||||||||||||
·Lamp Weight: | 2.40KG | ||||||||||||||
·Overall Dimension: | φ160*280mm / φ200*318mm | ||||||||||||||
·IP Grade: | IP40 | ||||||||||||||
·Working Temperature: | -40℃-55℃ | ||||||||||||||
·Working Life-span: | 35000H |
