Description
1. CE FCC RoHS ERP PSE certificated
2. R63 R80 R90 model shape led bulb
3. Aluminum with PBT housing for better heat disspation
4. Equipped with high-efficiency IC constant driver
5. Energy-saving LED lighting for indoor lighting
6. Multiple sizes to choose for different lamp fixtures
7. Mainly used in household, living room, ceiling, home, shopping mall, commercial lighting, etc.
Share:
Product Introduction
Energy-saving LED bulb
R50 R63 R80 R90 model shapes for markets
Energy-saving LED light source for home use, can replace traditional tungsten filament bulbs, fluorescent bulbs, etc., easy replacement, with E27, B22, E26, E14 and other screw options
Energy saving with high bright lumens
Well-known brand led chips
High-performance LED optical configuration, to meet the needs of various lighting solutions SDCM<6, 90LM/W, CRI≥80RA,THD≤20%, AC100-277V, 3000K 4000K 6500K optional

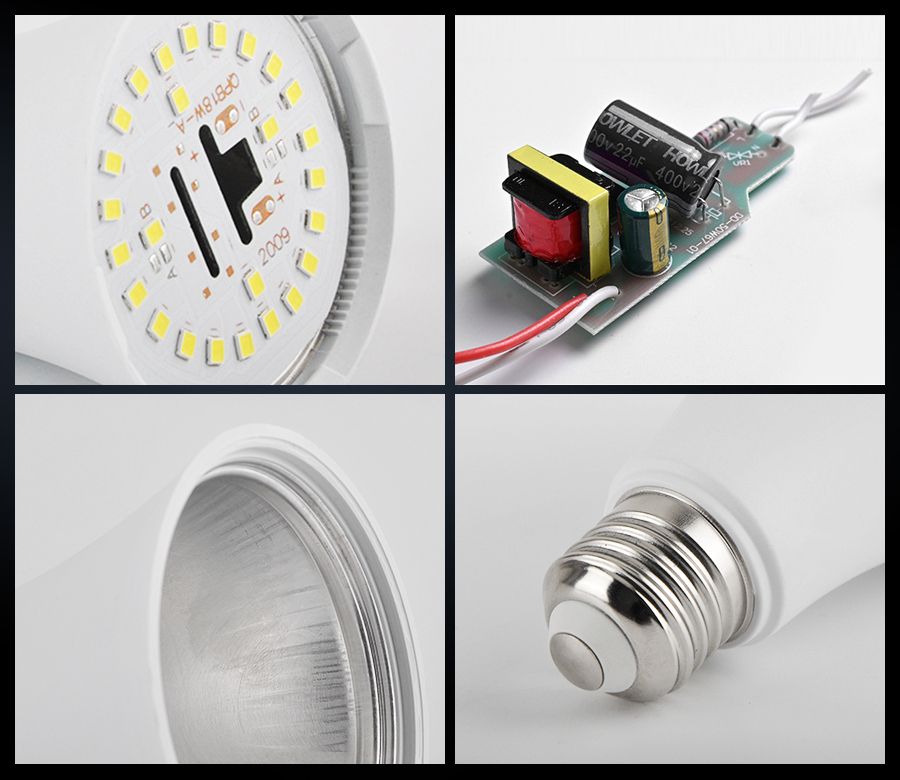

Made of high quality materials
Aluminum with PBT housing
All materials are strictly quality controlled, using high lumen brand lamp beads, aluminum with PBT housing, IC constant current driver, etc. Energy saving and environmental protection, long life use

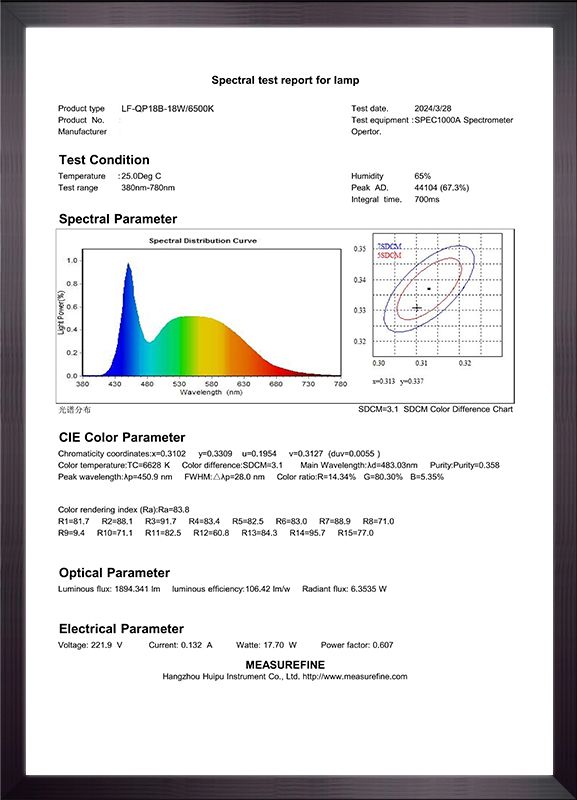

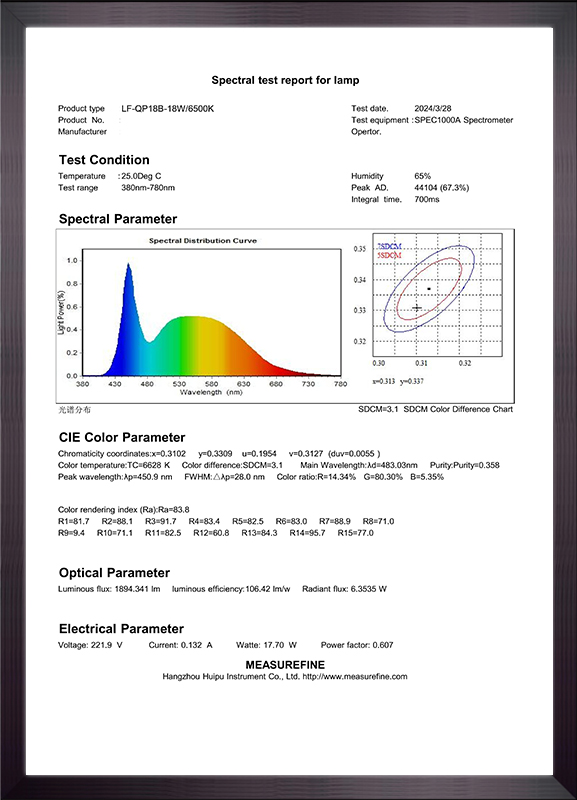

OPTICAL INSPECTION REPORT
If you need ies report, please consult our business
We can provide professional lighting solutions and lighting simulation effect solutions
APPLICATION SCENARIO DISPLAY
Datasheet
Guangdong LUFUL Lighting Technology Co., Ltd.
| LED BULB LIGHT | |||||||||||||||
| Spec Sheet Revision Date: 2024-12-01 | |||||||||||||||
| Model: LF-QP-R | |||||||||||||||
| Electricity Parameter | |||||||||||||||
| ·Rated Power: | 3W 7W 12W 18W 24W | ||||||||||||||
| ·Working Power: | 3W 7W 12W 18W 24W（±5%） | ||||||||||||||
| ·Input Voltage: | AC100-265V | ||||||||||||||
| ·Freqency Range: | 50/60Hz | ||||||||||||||
| ·Power Factor: | ＞0.6 | ||||||||||||||
| ·Power Efficiency: | 88﹪ | ||||||||||||||
| Optical Parameter | |||||||||||||||
| ·Light source configuration | Sanan | ||||||||||||||
| ·Color Temperature: | 3000K 4000K 6500K | ||||||||||||||
| ·Led Initial Flux: | 270-2160lm | ||||||||||||||
| ·Luminous Efficiency: | 90LM/W（±5%） | ||||||||||||||
| ·Light attenuation standard | ≥25000 | ||||||||||||||
| ·Power configuration: | IC Constant Current Driver | ||||||||||||||
| ·Color Rendering Index: | Ra＞80 | ||||||||||||||
| ·Luminous Anlge: | ＞120° | ||||||||||||||
| Lamp Specification | |||||||||||||||
| ·Lamp Material: | Aluminum with PBT | ||||||||||||||
| ·Lampshade Material: | PC Cover | ||||||||||||||
| ·Lamp Colour: | White | ||||||||||||||
| ·Base: | E27 E26 B22(12W 18W 24W) E14(3W 7W) | ||||||||||||||
| ·Base Material : | Iron plated with nickel | ||||||||||||||
| ·Overall Dimension : | φ39*68mm(3W) φ50*83mm(7W) φ63*100mm(12W) φ80*115mm(18W) φ90*127mm(24W) | ||||||||||||||
| ·IP Grade : | IP20 | ||||||||||||||
| ·Working Temperature : | —20℃—60℃ | ||||||||||||||
| ·Working Life-span : | 35000H | ||||||||||||||
