Description
1. CE FCC RoHS ERP PSE certificated
2. Frameless housing with better and larger lighting area
3. Milkly white PC cover with higher transmittance
4. Equipped with high-efficiency IC constant driver
5. Energy-saving LED lighting for indoor lighting
6. Multiple sizes to choose for different installation hole
7. Mainly used in household, living room, ceiling, home, shopping mall, commercial lighting, etc.
Share:
Product Introduction
Frameless lamp housing
Larger light emitting area for ceiling surface mounting
Exquisite and small, hide yourself, illuminate the spaceuse a variety of scenesand enhance the commercial atmosphere of the home
Energy saving with high bright lumens
Well-known brand led chips
High-performance LED optical configuration, to meet the needs of various lighting solutions SDCM<6, 80LM/W, CRI≥80RA,THD≤20%, AC100-277V, 3000K 4000K 6500K optional

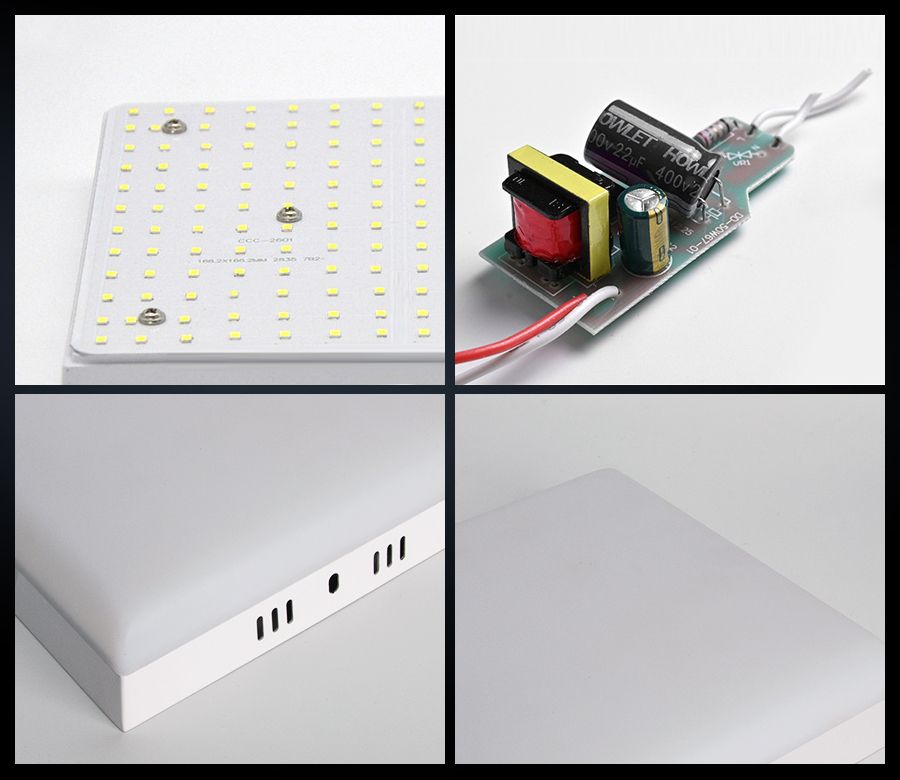

Made of high quality materials
Aluminum frame and IC led driver
All materials are strictly quality controlled, using high lumen brand lamp beads, die-cast aluminum heat dissipation shell, IC constant current drive, etc. Energy saving and environmental protection, long life use

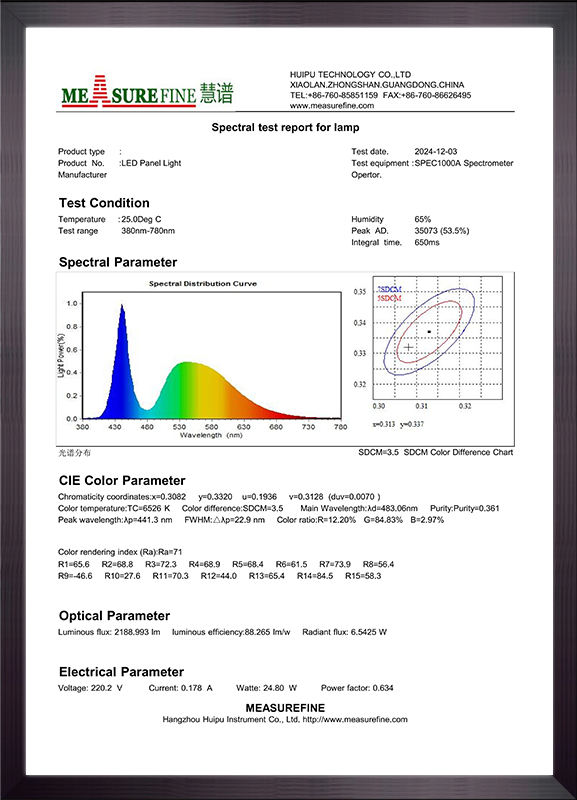

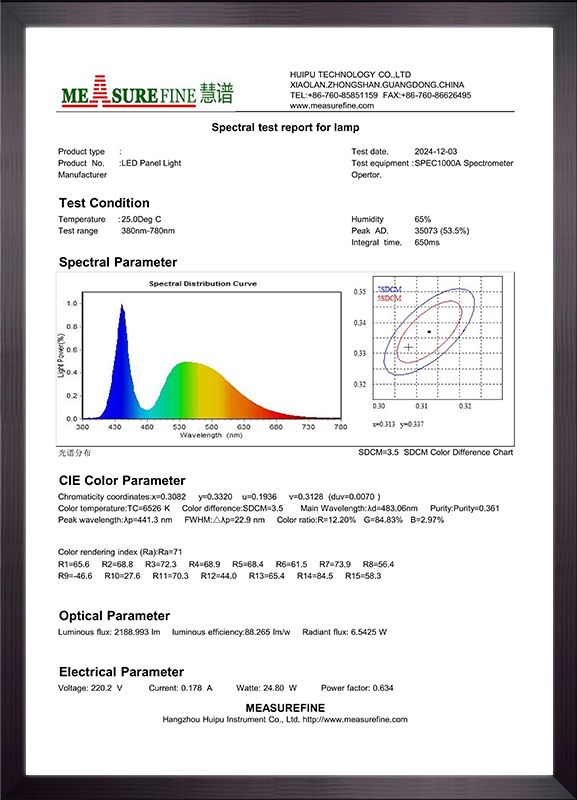

OPTICAL INSPECTION REPORT
If you need ies report, please consult our business
We can provide professional lighting solutions and lighting simulation effect solutions
APPLICATION SCENARIO DISPLAY
Datasheet
Guangdong LUFUL Lighting Technology Co., Ltd.
| LED FRAMELESS RECESSED PANEL LIGHT | |||||||||||||||
| Spec Sheet Revision Date: 2024-12-01 | |||||||||||||||
| Model: LF-ROW-B / LF-SQW-B | |||||||||||||||
| Electricity Parameter | |||||||||||||||
| ·Rated Power: | 18W 24W 36W 48W | ||||||||||||||
| ·Working Power: | 18W 24W 36W 48W（±5%） | ||||||||||||||
| ·Input Voltage: | AC100-265V | ||||||||||||||
| ·Freqency Range: | 50/60Hz | ||||||||||||||
| ·Power Factor: | ＞0.6 | ||||||||||||||
| ·Power Efficiency: | 88﹪ | ||||||||||||||
| Optical Parameter | |||||||||||||||
| ·Light source configuration | Sanan | ||||||||||||||
| ·Color Temperature: | 3000K 4000K 6500K | ||||||||||||||
| ·Led Initial Flux: | 1440-3840lm | ||||||||||||||
| ·Luminous Efficiency: | 80LM/W (±5%) | ||||||||||||||
| ·Light attenuation standard | ≥25000 | ||||||||||||||
| ·Power configuration: | IC Constant Current Driver | ||||||||||||||
| ·Color Rendering Index: | Ra＞70 | ||||||||||||||
| ·Luminous Anlge: | ＞120° | ||||||||||||||
| Lamp Specification | |||||||||||||||
| ·Lamp Material: | Iron Metal | ||||||||||||||
| ·Lampshade Material: | PC Cover | ||||||||||||||
| ·Lamp Colour: | White | ||||||||||||||
| ·Installation: | Surface Mounted | ||||||||||||||
| ·Thickness: | 45mm | ||||||||||||||
| ·Overall Dimension: | φ120mm - φ300mm | ||||||||||||||
| ·IP Grade: | IP20 | ||||||||||||||
| ·Working Temperature: | -20℃-60℃ | ||||||||||||||
| ·Working Life-span: | 35000H | ||||||||||||||
