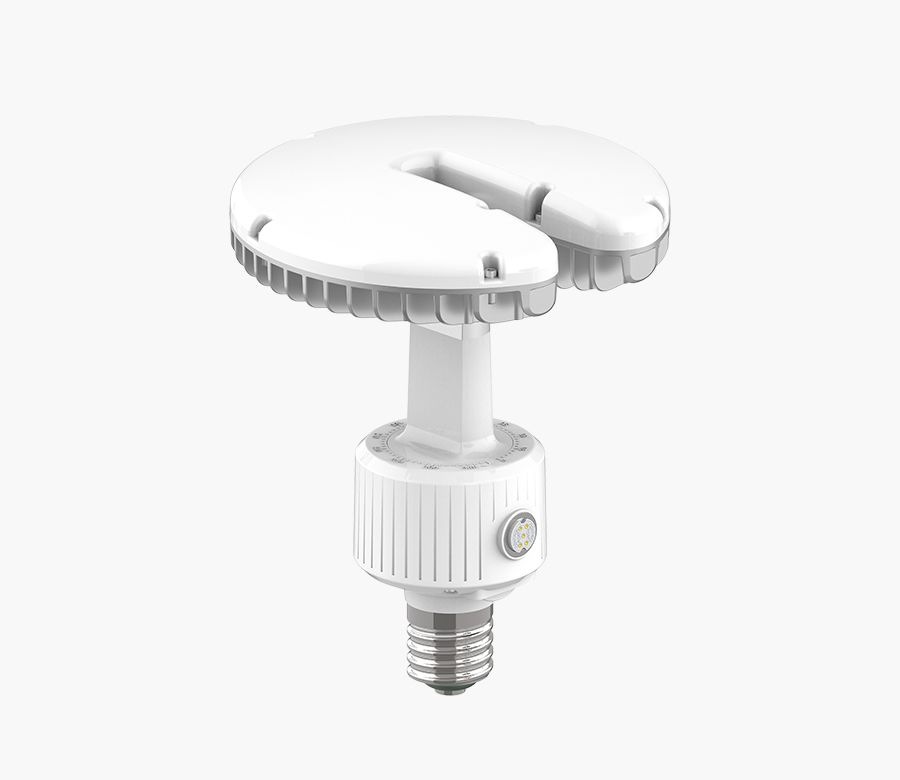

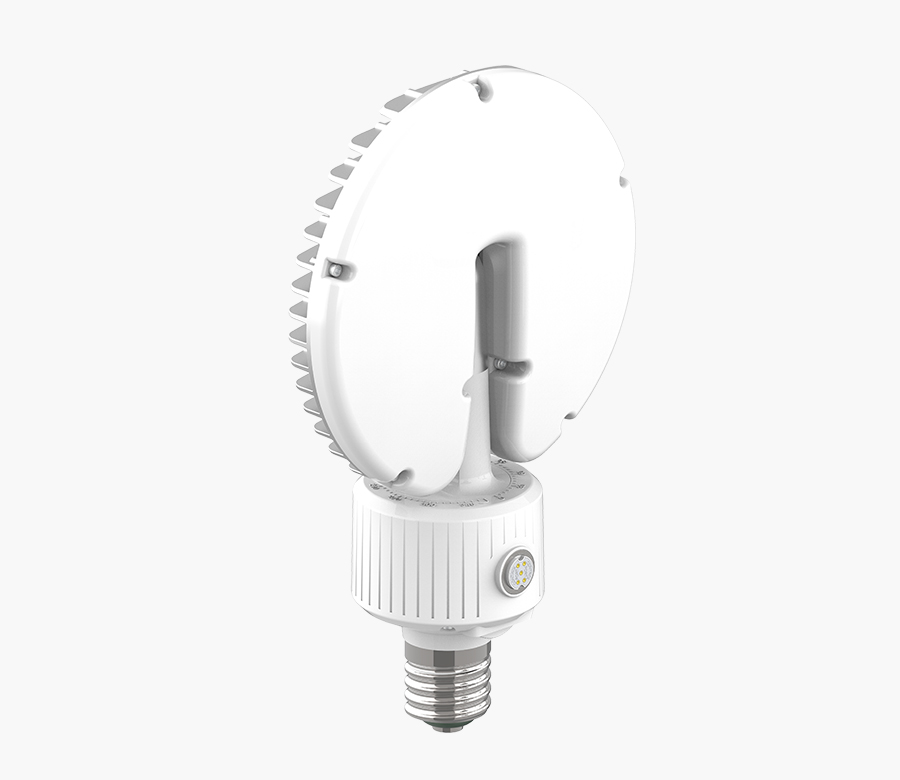

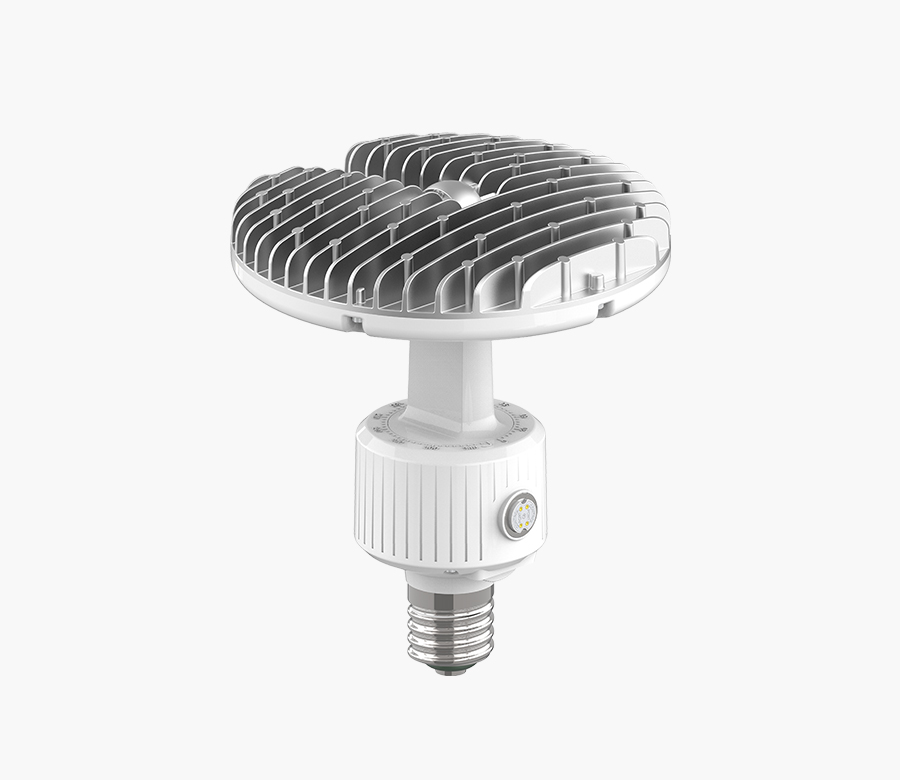

RS2 Smart Multi-angle Industrial Bulb Light 65W 80W 100W 120W

Description



1. CE FCC RoHS ERP PSE certificated

2. Original patented design product

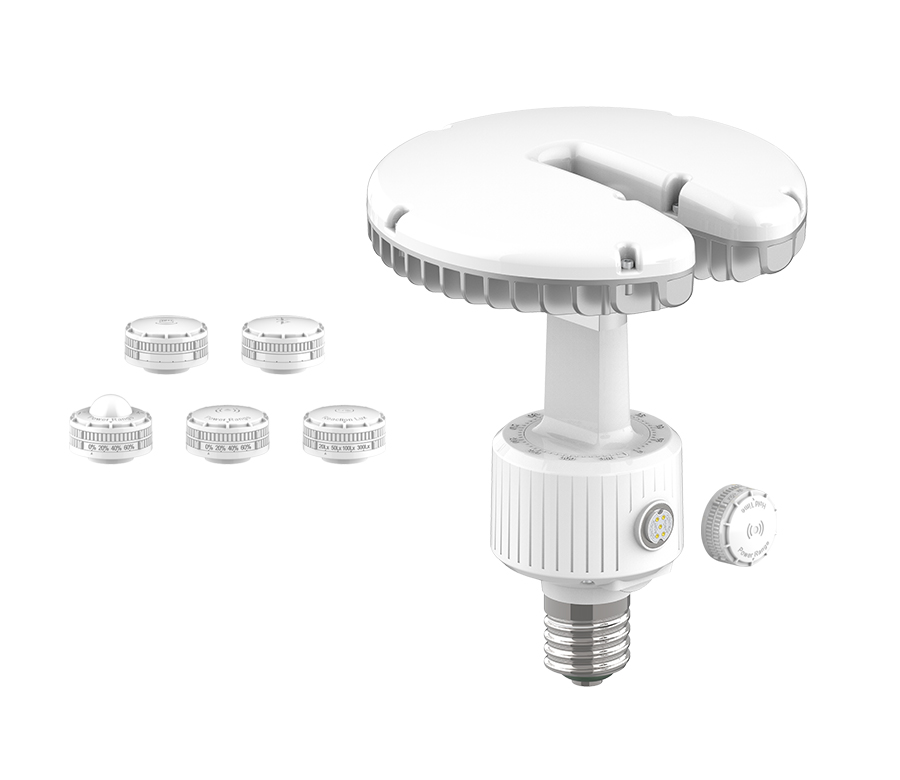

3. Smart driver inside with temperature control protection program, available connect to IR sensor, radard sensor, photocell sensor, BT Mesh control and Wi-Fi control modules

4. Universal adjustment function,multi-angle adjustable, to achieve accurate directional lighting needs

5. 3 CCT dial switch and power dial switch

6. Retrofit LED lamp to replace of HPS HID MHL

7. 65W 80W 100W 120W power optional

8. Mainly used in factories, warehouses, garages, processing workshops, etc.

Product Introduction

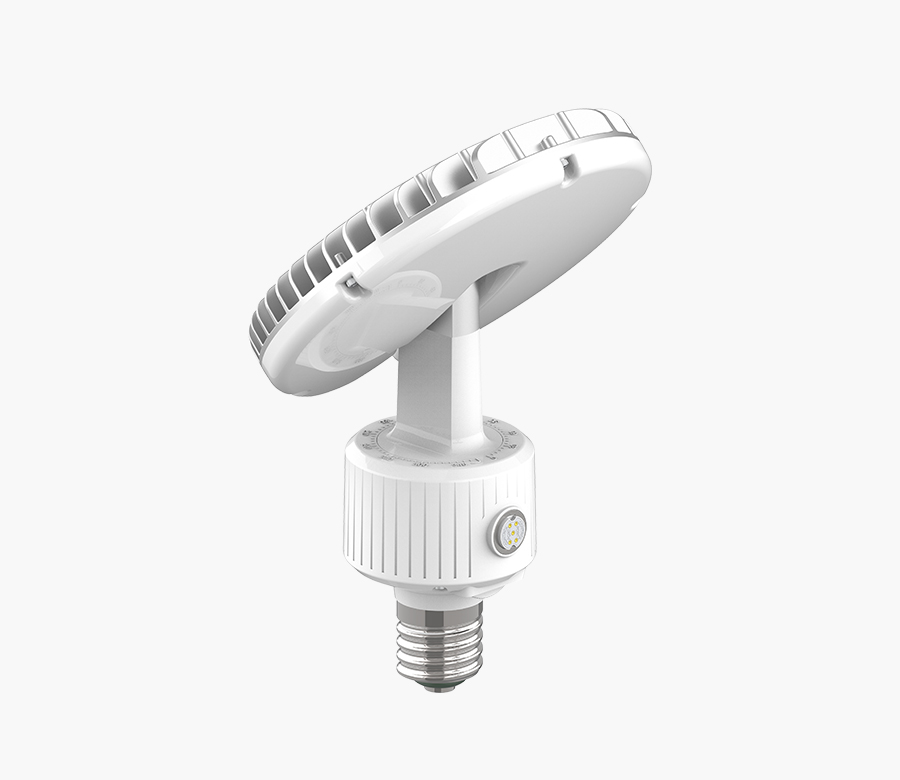

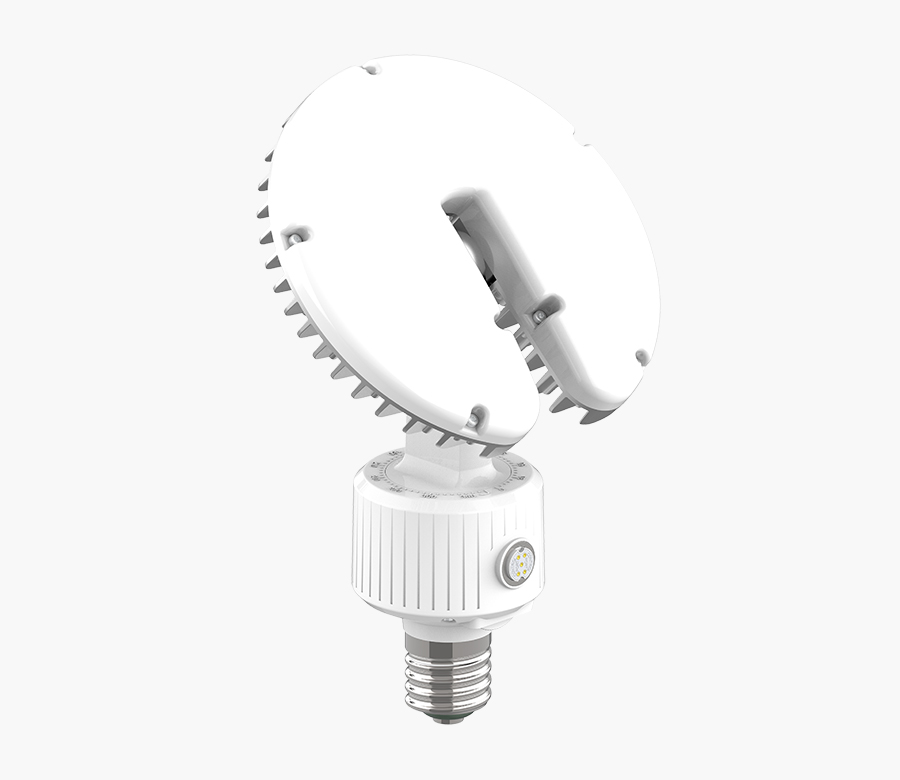

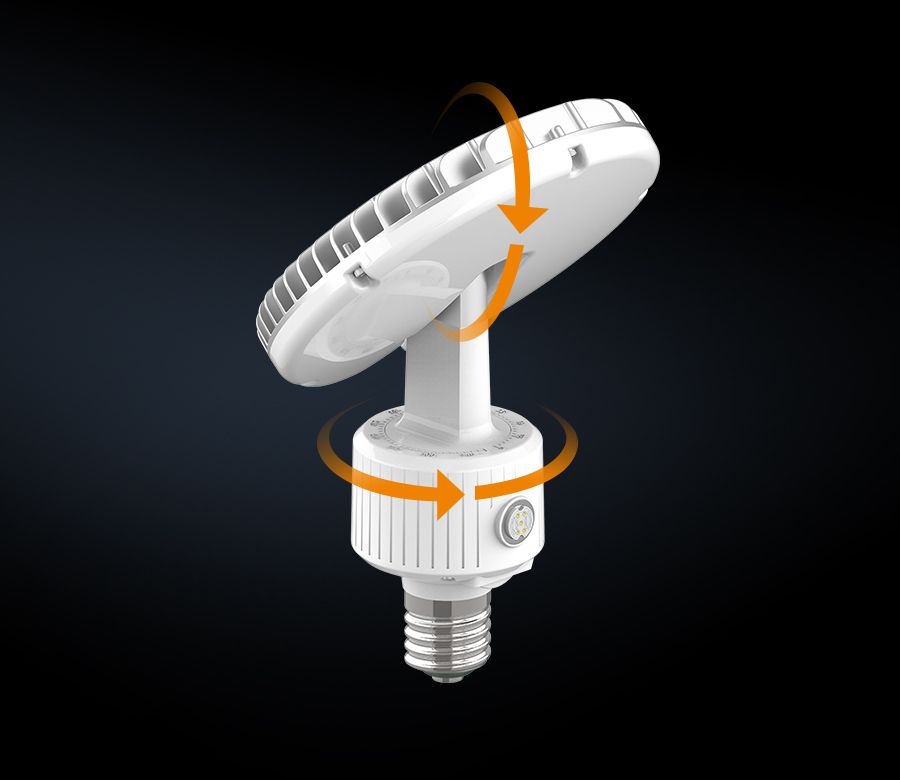

Flexible adjustment at multiple angles

Free adjustment of latitude and longitude


1. Abreakthrough to add universal adjustment function on the lamp, users can adjust different angles as they like

2. The power is moderate and can be rotated and stopped accurately, so as to achieve precise directional lighting requirements without changing the position of the lamp

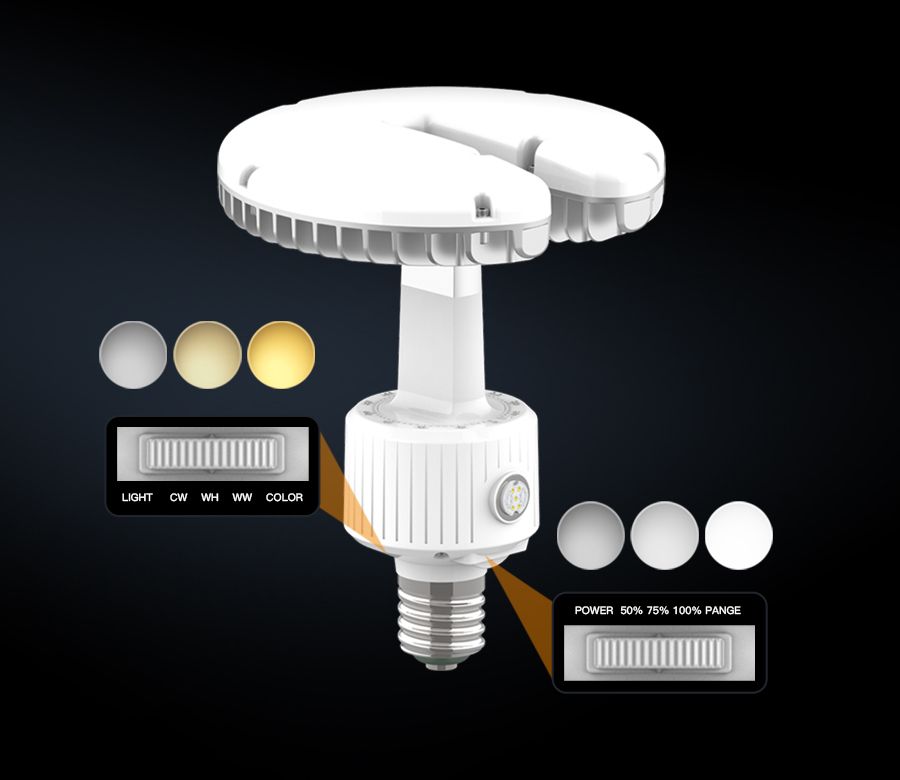

Dial code photoelectric adjustment

Adjust photoelectric parameters to save energy and reduce emissions


Users can flexibly adjust the color of the light according to the actual use scene, and at the same time adjust the power and brightness of the lamp according to the actual lighting brightness requirements, so as to achieve the purpose of energy saving and emission reduction for one lamp with multiple functions.

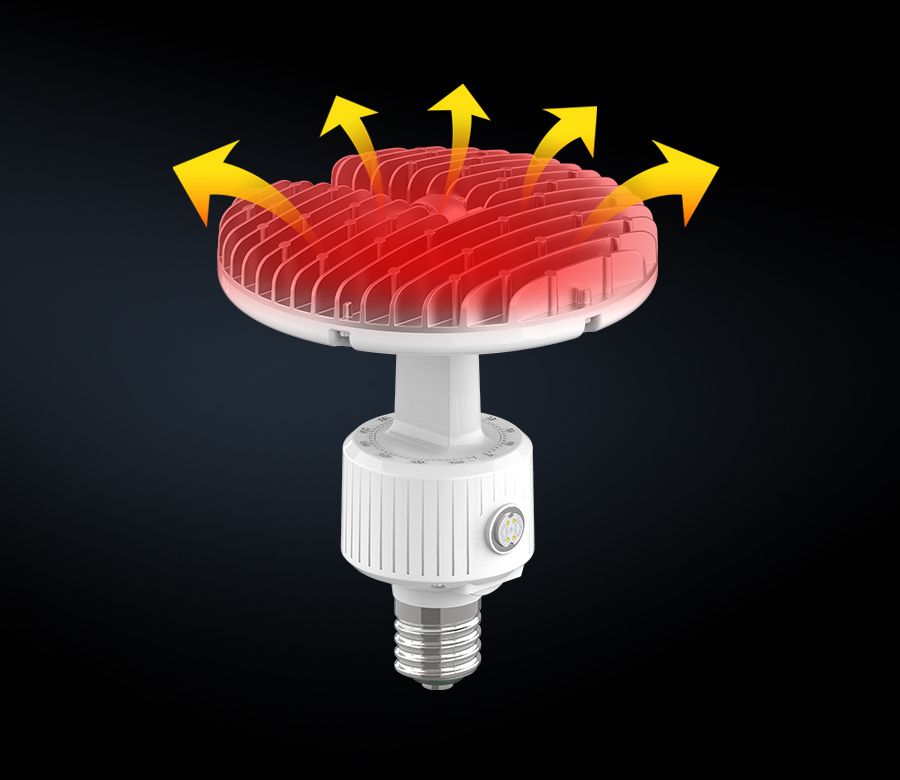

Good heat dissipation, long lifespan

Thickened high-purity aluminum radiator


1. The light source board is directly attached to the pure aluminum radiator, and the straight-forward direct heat dissipation method is always the best solution

2. Industrial-style shape design, cooling teeth in line with air flow to meet high-intensity cooling requirements while ensuring aesthetics

3. The sharp-edged metal texture and unique industrial design style interpret this elegant and thoughtful lamp

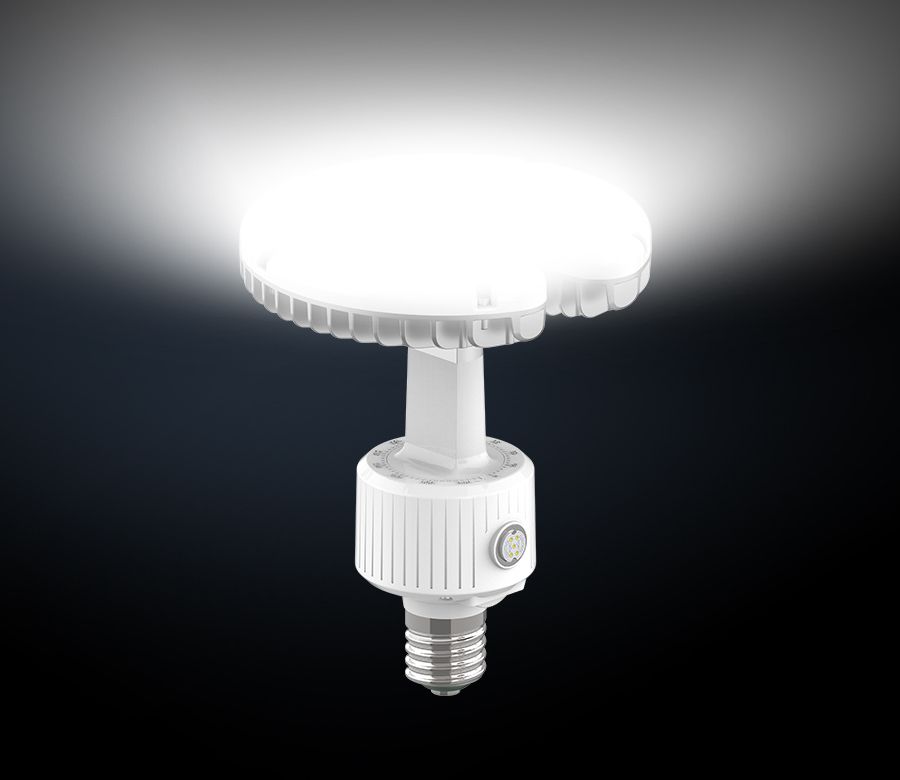

Energy saving with high bright lumens

Well-known brand led chips


New heat dissipation technology design patent, high-performance LED optical configuration, to meet the needs of various engineering lighting solutions SDCM<1, 130LM/W, CRI≥80RA,THD≤20%, AC100-277V, PF>0.95

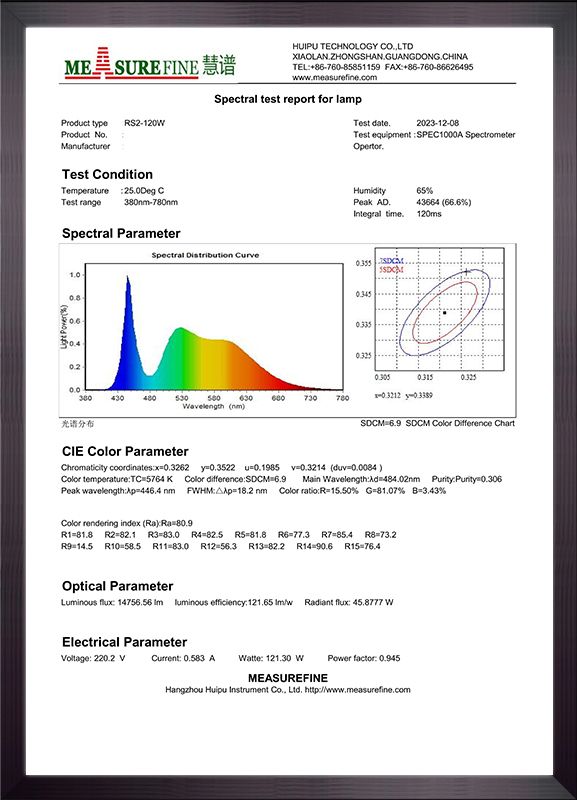

OPTICAL INSPECTION REPORT

If you need ies report, please consult our business


We can provide professional lighting solutions and lighting simulation effect solutions

APPLICATION SCENARIO DISPLAY

Landscape Lighting

Landscape Lighting

High mast light, courtyard lamp, LED retrofit light source.

Street Lighting Project

Street Lighting Project

Replace and retrofit lamp for street light fixture

High Bay Industrial Lighting

High Bay Industrial Lighting

Workshop warehouse high bay retrofit lamp

Datasheet

Guangdong LUFUL Lighting Technology Co., Ltd.

RS2 SMART MULTI-ANGLE INDUSTRIAL LIGHT
Spec Sheet Revision Date: 2024-12-01
Model: LF-RS2-65-120W
Electricity Parameter
·Rated Power:65W 80W 100W 120W
·Working Power:65W 80W 100W 120W(±5%)
·Input Voltage:AC100-277V
·Freqency Range:50/60Hz
·Power Factor:>0.9
·Power Efficiency:88﹪
Optical Parameter
·Light source configurationSanan
·Color Temperature:3000K 4000K 6500K
·Led Initial Flux:8450-19500lm
·Luminous Efficiency:135LM/W(±5%)
·Light attenuation standard≥25000
·Power configuration:Non-isolated IC Smart Driver
·Color Rendering Index:Ra>80
·Luminous Anlge:>120°
Lamp Specification
·Lamp Material:PC with aluminum heat sink
·Lampshade Material:PC Cover
·Lamp Colour:White
·Base:E27 / E39 / E40
·Lamp Weight:2.40KG
·Overall Dimension:φ160*280mm / φ200*318mm
·IP Grade:IP40
·Working Temperature:-40℃-55℃
·Working Life-span:35000H
