Description
1. CE FCC RoHS ERP PSE certificated
2. Original patented design product

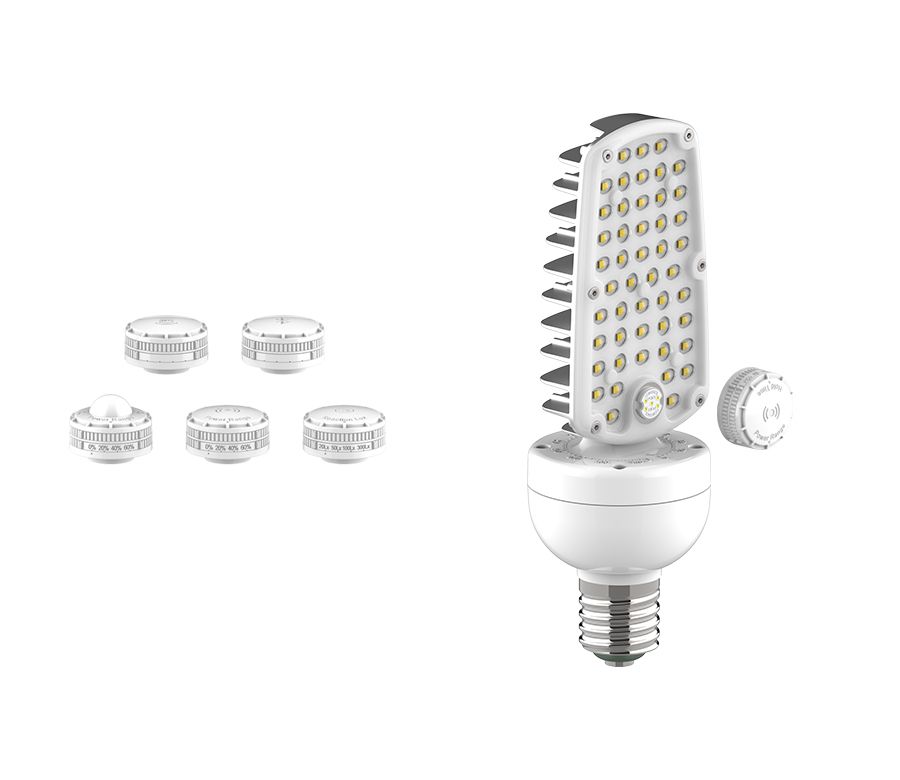

3. Smart driver inside with temperature control protection program, available connect to IR sensor, radard sensor, photocell sensor, BT Mesh control and Wi-Fi control modules
4. Die-casting aluminum heat sink for better heat disspation, lens cover of 70*140°
5. Energy-saving LED lighting for street light projects
6. Retrofit LED lamp to replace of HPS HID MHL
7. Waterproof grade rate up to IP65
8. Mainly used in outdoor lighting and street light fixture
Share:
Product Introduction

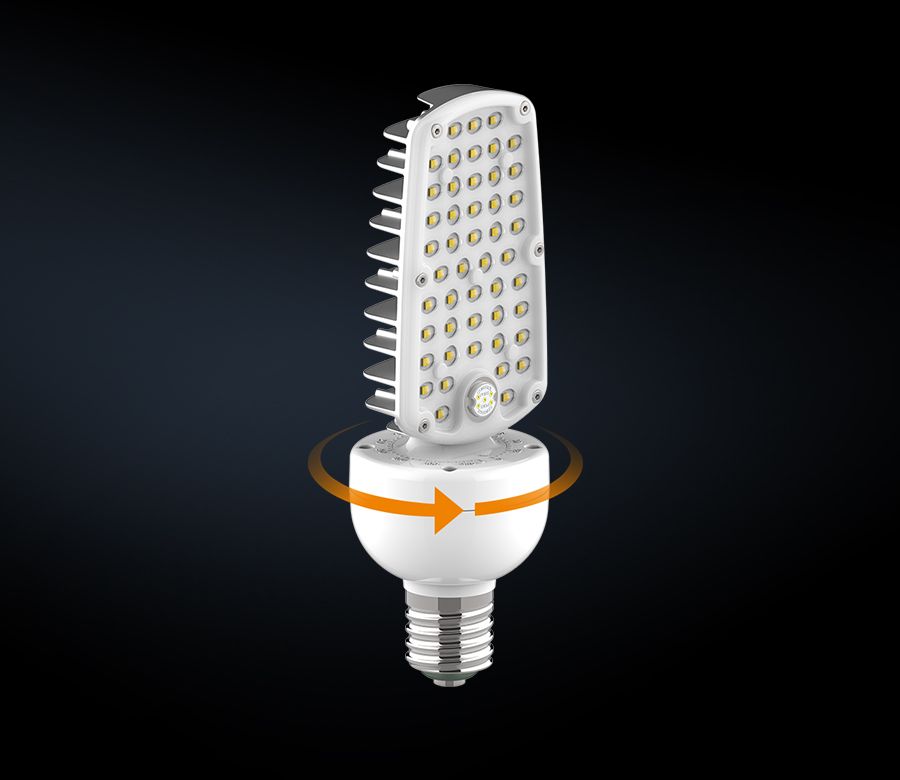

345 degree arbitrary adjustment
Horizontal left and right adjustment angle design
1.Directional lighting products are often in a single direction, This product adds a horizontal, left, and right analeadjustment function of 345 degrees
2.The lamp body is equipped with a scale mark, which truly realizes the demand for precise lighting in the actual use process

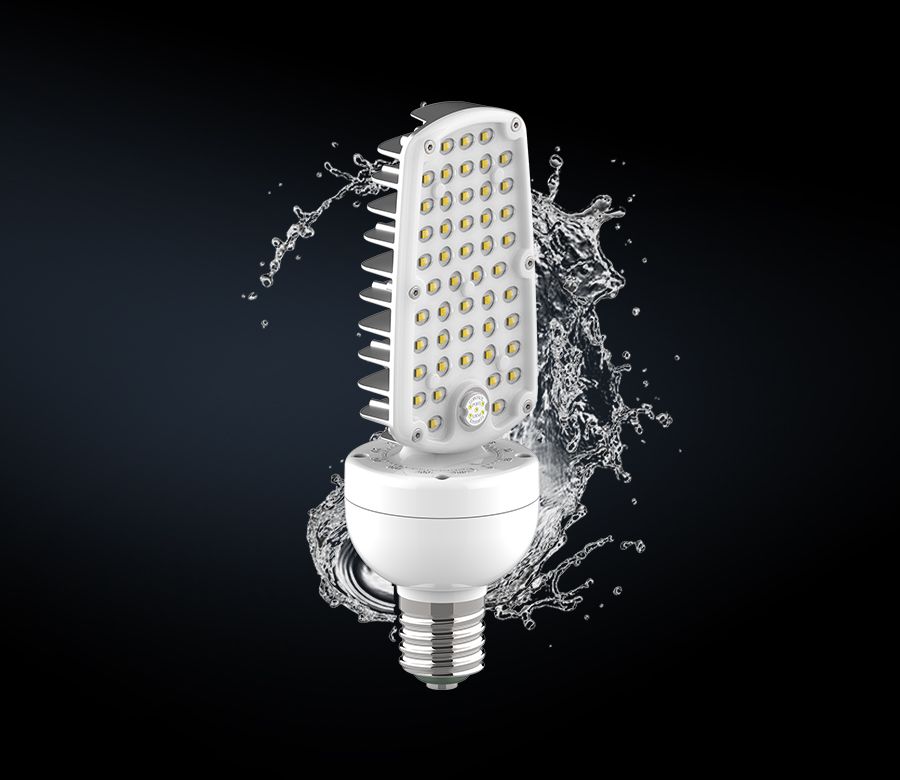

Outdoor waterproof
Ip65 waterproof grade
1. Under the premise of ensuring excellent heat dissipation performance, multiple waterproof rubber rings are set inside the lamp bodyPerfect cooperation between parts to achieve high-performance structural waterproofing
2. Through the precise waterproof and heat dissipation structure, it can work normally in any harsh environment

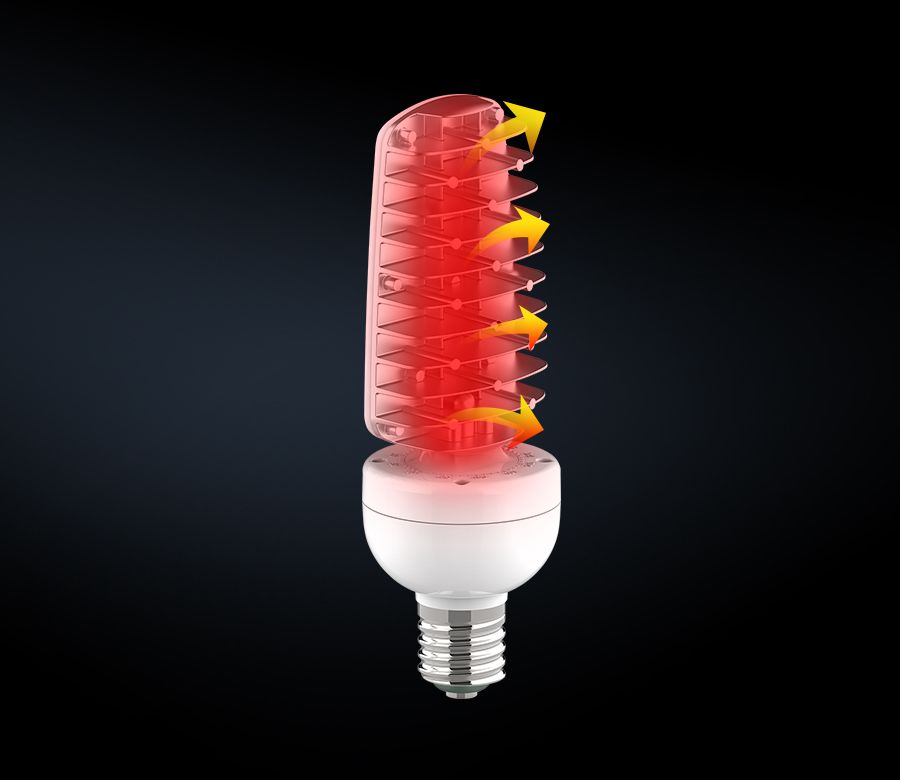

Sharp edges excellent heat dissipation

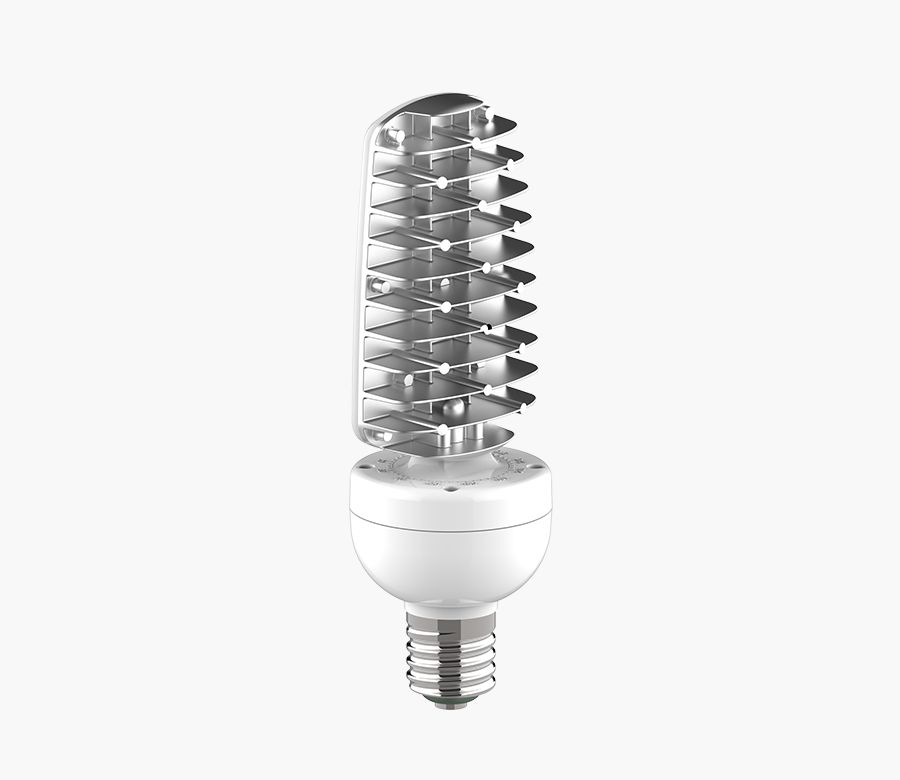

High-purity aluminum heat sink
1. The light source board is directly attached to the pure aluminum radiator, and the straight-forward direct heatdissipation method is always the best solution
2. The horizontal fakes on the back of the heat dissipation teeth conform to the uniform air flow direction, which not onlyensures heat dissipation, but also has a more aesthetic feeling
3. The sharp-edged metal texture and the white lamp body complement each other, everything is so natural and just right

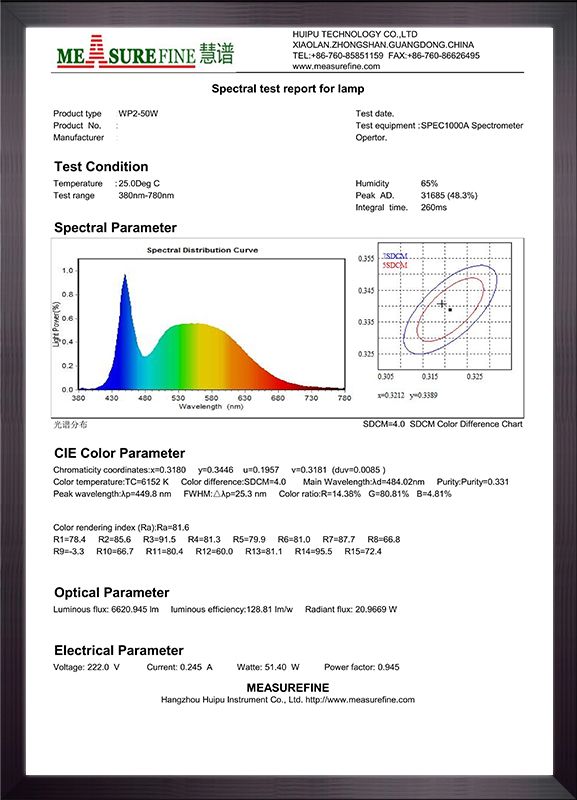

OPTICAL INSPECTION REPORT
If you need ies report, please consult our business
We can provide professional lighting solutions and lighting simulation effect solutions
APPLICATION SCENARIO DISPLAY
Datasheet
Guangdong LUFUL Lighting Technology Co., Ltd.
WP2 SMART STREET LIGHT BULB | |||||||||||||||
Spec Sheet Revision Date: 2024-12-01 | |||||||||||||||
Model: LF-WP2-30-60W | |||||||||||||||
Electricity Parameter | |||||||||||||||
·Rated Power: | 30W 40W 50W 60W | ||||||||||||||
·Working Power: | 30W 40W 50W 60W(±5%) | ||||||||||||||
·Input Voltage: | AC100-277V | ||||||||||||||
·Freqency Range: | 50/60Hz | ||||||||||||||
·Power Factor: | >0.9 | ||||||||||||||
·Power Efficiency: | 88﹪ | ||||||||||||||
Optical Parameter | |||||||||||||||
·Light source configuration | Sanan | ||||||||||||||
·Color Temperature: | 3000K 4000K 6500K | ||||||||||||||
·Led Initial Flux: | 3900-7800lm | ||||||||||||||
·Luminous Efficiency: | 135LM/W(±5%) | ||||||||||||||
·Light attenuation standard | ≥25000 | ||||||||||||||
·Power configuration: | Non-isolated IC Smart Driver | ||||||||||||||
·Color Rendering Index: | Ra>80 | ||||||||||||||
·Luminous Anlge: | >220° | ||||||||||||||
Lamp Specification | |||||||||||||||
·Lamp Material: | PC with aluminum heat sink | ||||||||||||||
·Lampshade Material: | Lens Cover(70*140°) | ||||||||||||||
·Lamp Colour: | White | ||||||||||||||
·Base: | E27 / E39 / E40 | ||||||||||||||
·Lamp Weight: | 1KG | ||||||||||||||
·Overall Dimension: | φ90*275mm | ||||||||||||||
·IP Grade: | IP65 | ||||||||||||||
·Working Temperature: | -40℃-55℃ | ||||||||||||||
·Working Life-span: | 35000H |
